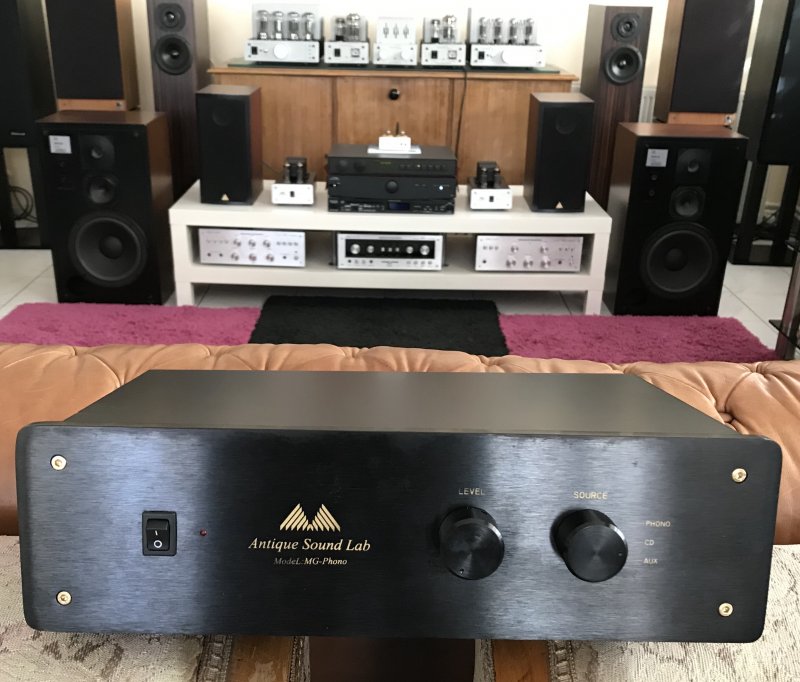

Antique Sound Lab MG Lambalı Pre Amplifikatör.
(Satılmıştır)
MM Pikap katı bulunmakta olup lambalı olarak çalışmaktadır
SPECIFICATIONS:
Phono Stage:
Gain 57 db
Frequency responsible 20Hz + 17db 20KHz - 17db (Riaa)
Distortion at 1V < 1%
S/N Ratio 79 db /3mV
S/N Ratio with A weighting 88 db (1mV)
Line Stage:
Gain 21 db
Maximum output 12 V
Frequency responsible at 1V 13Hz - 67KHz
Frequency responsible at full power 13Hz - 47KHz
Distortion at 1V < 0.3%
Distortion at full power < 2.8%
S/N Ratio 94db /0.2mV
S/N Ratio with A weightiong 98db (0.15mV)
Input impedance 100K
General:
Power Requirements: 18W
Tubes: 12AX7x2 Phono 12AU7x2 Line
Dimension: W x D x H 220 x 370 x 110 mm
Net Weight: 4.5 Kg
